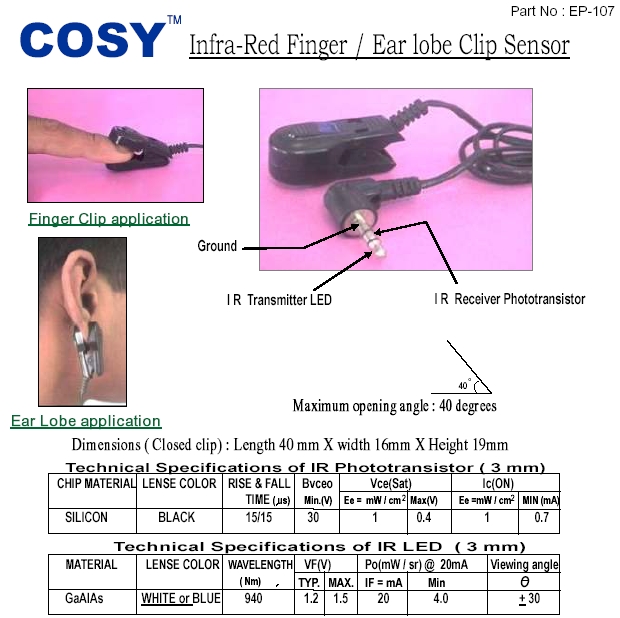

IR Sensors, Infrared Sensors, Finger Clip Application, IR Transmitter LED, IR Receiver Phototransistor.

Cable : 2 core shielded cable , Cable Length : 1.1 meter appx.

Connector Plug : 3.5 mm stereo plug , Clip Housing Material : ABS

******************************************************************************

Important :

For best results the application environment should be away from direct sunlight or high intensity lights and the person under observation should stop any body movements / exercises.

These sensor clips are basically designed for use with COSY Pulse Rate Monitors Model PM-1102.

They can also be used in research and development projects and as replacement probes in different exercise machines like treadmills, exercises etc. if they have compatible circuits.

*****************************************************************************************

These sensor clips consist of only a pair of IR photo transistor and receiver LEDs enclosed in a specially designed plastic clip housing and cable with stereo jack plug. The probe clip alone does not have any other circuit .

To use the probe you must have some suitable application circuit or compatible pulse rate monitor.

The technical data of probe clip is given above for comparison .

It is not guaranteed that clips will match with your any existing machines . Pl. compare technical data and plug connections before use.

Download the pdf version of IR sensors here : IR Sensors/ Ear Clip Sensors
