Multiple applications:
- Nurse Call Displays to smartly attend the needs of
patients in all hospitals and nursing homes .
- These versatile systems can
also be used in Hotels and Offices etc. as an ideal room call system for
calling room services persons / peons etc.
- They can also be used as single call bell for multiple doors with calling door
identification.
- Floor Indication in lifts elevators.
- Customization offered for other possible applications in industries etc.
Easy to install , operate & maintain.
Any ordinary electrician can do the installation quickly.

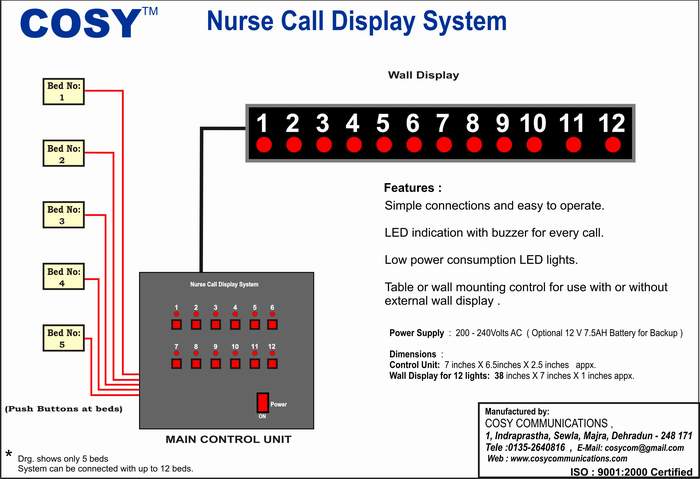

Installation :
1. Fix any type of simple push buttons at
required calling point locations with 2 core cables .
2. Connect the Display with main control unit by connector cable provided
with system.
3. Connect a suitable bell at terminal provided in external LED display
4. Connect calling point switches with main control terminal strip using
any 2 core telephone cable.
5. Connect power adapter or 12 Volt Battery at DC socket provided in
Control unit .
6. Switch ON the system by RED Power ON/OFF switch provided at side.
Operation :
When at any of the locations a switch is
pressed , the light in control unit as well as external display will start
glowing against respective numbers . The attendant can now see which room
is calling. Lights of attended numbers can be turned off by pressing its
respective buttons. Every new call will also activate the bell . Duration
of bell sound will depend on the type of bell .Bell can be optionally
switched off through a switch provided in control unit .
Caution : Do not connect any mains
operated bell in the system. Use only battery operated bells.
Prices :
-
Model : KNC-6 Control unit ---
Rs. 2500/- (
International Price :USD 80 all inclusive of shipping through EMS)
-
Model : KNC-12 Control unit --- Rs.
4500/- ( International Price
:USD 120 all inclusive of shipping through EMS)
-
External wall display with 6 lights for KNC-6 ... Rs.
2000/- ( International Price :USD 75
all inclusive of shipping through EMS)
-
External wall display with 12 lights for KNC-12 ... Rs.
4000/- ( International Price :USD 140
all inclusive of shipping through EMS)
5 meter long connector cable for connecting
wall display with control unit included in price of external wall
display lights.
Specifications:
Power Supply : 12 VDC , Use any suitable power adapter or 12V Battery
Dimensions & Weight :
Control Unit: 7 inches X 6.5inches X 2.5 inches , 6 lights Display
Units: 19 inches X 7 inches X 1.5 inches with 2 inches diameter LED
Lights.
12 lights Display Units: 38 inches X 7 inches X 1.5 inches with 2 inches diameter LED
Lights.Connecting cable between control and display : 5 meter long Multicore core
cable with D connectors.( included)
Connecting cable between call switches and control unit : use any 2 core
cable ( regular
telephone cables) .Not included
Accessories Included : Terminal strip for connecting calling room switches
with control unit
Room switches : use any type of push buttons like bell switches as required .
( Not included )
****************************************************************************************************************
NEW MODEL :
Now also available new sophisticated model which
require minimum wiring .
For product catalogue Click here

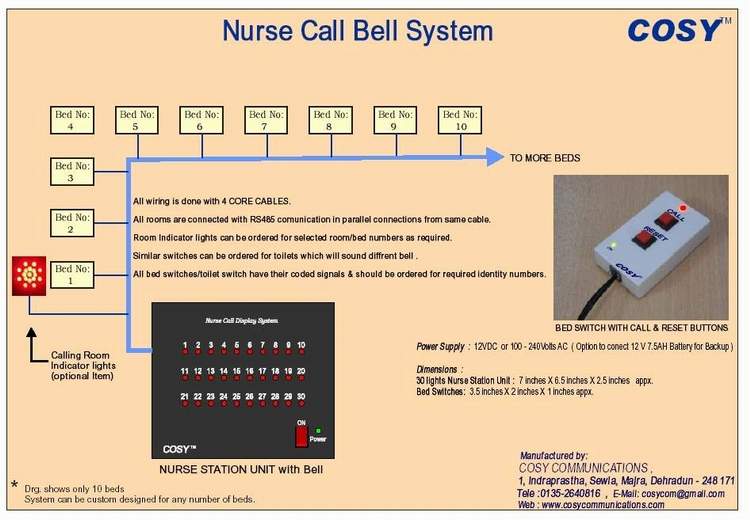

New system as shown in above picture comprises of
One Nurse station unit & Bed switches connected in parallel on same 4 core
cable .
There for this latest system requires minimum
possible wiring . Bed switches send RS485 communication signals with their
unique codes which are identified by Nurse station Unit .
Customers can order the switches by informing
us their bed or room numbers ( 1 to 99 ) .
System can be customized by us wherever
possible.
Operation:
as soon as any bed switch CALL button is
pressed respective light for that bed number starts glowing in nurse station
unit. a small duration bell also sound there. When nurse attends the patient
she presses the RESET button of calling bed switch to reset this light .
Prices inclusive of shipping within India for
different configurations are submitted below:
- Nurse station Unit 15 way : Rs.4500/-
each, Dispatch within 2 weeks from our works
- Nurse station Unit 30 way : Rs.8500/-
each, Dispatch within 3 weeks from our works
- Nurse station Unit 40 way : Rs.10500/-
each, Dispatch within 4 weeks from our works
- Nurse station Unit 50 way : Rs.12500/- each ,
Dispatch within 4 weeks from our works
- Bed switches : Rs.500/-each (can be
ordered by you in qty as required.)
- 4 core cable : Rs.10 per meter or can be procured by
you locally .
Customers can procure locally & install any normal computer UPS for
uninterrupted power to the Nurse station unit.
C.S.T. : @ 4.5% will be charged extra
For export Prices contact us at :
cosycom@gmail.com
Pl. note above prices are all
inclusive of taxes and freight for shipping anywhere within India.
Payments : 100% advance for
order values up to Rs.25,000/- and 50% advance balance against COD for order
values more than Rs.25,000/-
All systems are manufactured with user friendly
features and are very easy to install. All systems are fully connectorized
so that any ordinary person can install the system within minutes.
Customers are requested to let us know exact
present requirement so that we can suggest and quote for a suitable product accordingly.
We also custom design products to customer specifications.
Pl. send your P.O with payments by DD in
favor
of " Cosy Communications " payable at Dehradun .
You may also send P.O. by E-mail and deposit
payment by cash or cheque in any of our following accounts in your city if
their branches are available .
- ICICI Bank : Our account number is :
016405000727 in favor of Cosy Communications.
- IDBI Bank : Our account number is :
070102000005265 in favor of Cosy Communications
Please
send payments by D.D. in favour of COSY
COMMUNICATIONS payable at
Dehradun. No outstation cheques or D.D. are accepted.
International customers can send payments
through Paypal or TT . Credit card payments also possible through items
listed in eBay .
For various payment options click :
http://www.cosycommunications.com/payments.htm
Warranty :
All COSY
products are provided with
One year
free service warranty against
any manufacturing defect. (Defective items should be sent with return
postage prepaid) along with copy of purchase to our Dehradun Works . We assure a quick and satisfactory after sale service to
our all customers.
Warranty is offered to customers within India only . No warranty is
offered to international clients for obvious reasons like High Shipping
costs and customs clearance in both countries.
Delivery
: In case an order for single set is placed on us we
usually dispatch goods within one week by suitable courier service or
registered post parcel if courier service is not available, after receipt
of 100% payment .
all international orders will be shipped through EMS Speed post parcel or
Couriers only as agreed by us at the the time of orders . There might
be change in delivery time due to any circumstances and we shall not be
responsible for any consequences. Customers are also advised to suggest
their preferred courier or transport service. For bulk orders the delivery
time will be informed accordingly.
Click
here for submitting online query
For
any further queries or Export prices & business correspondence
pl mail to
cosycom@gmail.com
|

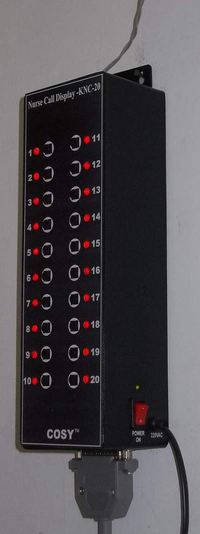

Main Control unit
External wall Displays
