Token Display System

Helps you to serve your customers to their total satisfaction.





                                                            Model NO:TD-3-403U  ( 3 digit display )
Features :

Simple operation and easy to install. Any ordinary electrician can install it in a short time.

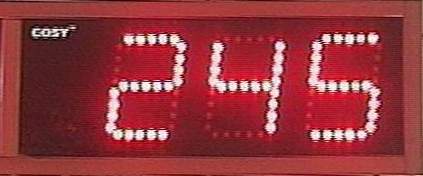

Large sized 3.5 inches high RED LED Displays, visible from 100 feet distance. Custom sizes also possible.
Pleasant musical chime. Two tones selectable.
Feather touch key board.
Solid state high efficiency circuit with 8 bit micro controller.
OPTIONAL : Provision to connect two or more displays in parallel to show the same information at more than one place simultaneously.

Introduction:  Token Display System are ideal for Banks, Airports, Public dealing offices , Doctors Clinics, Restaurants and other such places where people have to wait in line for their turn. These systems allow customers to wait without having to stand in line, once their number is displayed then only will they have to get in line for their turn . Musical chime for calling number. Provision for Automatic increment of numbers by pressing a single key.

Also available model with number announcement facility. Shortly introducing talking token number display. All models are easy to install , operate & maintain. Any ordinary electrician can do the installation quickly.

Installation :
1. Connect the Display with main control unit by cable provided.
2. Connect Mains cable of console to 220 Volts AC . ( Also Recommended UPS for back-up )

Operation:
Manual Mode : Press any required number up to 3 digits while watching the small display in console. Use Clear Key C to change the number every time or in case of wrong entry. Press the Bell Key B to sound the musical tone in display.

Auto Mode : Press any required starting number up to 3 digits in Manual mode. Change the switch to Auto Mode . Now when any of the number key is pressed , the display will show the incremented next token number .There is a preset delay of 10 seconds to change the next number. (Automatic bell also sounds For first 5 seconds). After 10 seconds the system is ready to enter and show the next token number .

Specifications:

Power Supply : 220v AC + 10%
Dimensions : Display Board size: 15 inches Length x 6 inches Breadth x 1.5 inches thick
Control Unit size: 9 inches Length x 8 inches Breadth x 2 inches thick

Interconnecting cable between display and control :12 core cable with 'D' connectors.
Standard cable length provided with instruments: 5 meters
(Maximum cable length possible - 25 meters)

Includes 10 meters of connector cable for connecting display and control. Extra cable will be charged@ Rs.20/- per meter.

Price :

  1.              Model NO:TD-2- 403U:   2 Digit Token display -  Rs. 4,400/-
  2.              Model NO:TD-3- 403U:   3 Digit Token display -  Rs. 4,950/-

Prices are all inclusive of taxes applicable, packing and courier charges within India.

Please send payments by D.D. in favour of COSY COMMUNICATIONS payable at Dehradun. No outstation cheques or D.D. are accepted.

Warranty : COSY Token Displays are provided with  Six months free service warranty against any manufacturing defect. (Defective items should be sent with return postage prepaid) along with copy of purchase to our Dehradun Works or New Delhi service center. We assure a quick and satisfactory after sale service to our all customers.

Delivery : In case an order for single set is placed on us we usually dispatch goods within one week by suitable courier service or registered post parcel if courier service is not available, after receipt of 100% payment by cash/bank draft along with written order. There might be change in delivery time due to any circumstances and we shall not be responsible for any consequences. Customers are also advised to suggest their preferred courier or transport service. For bulk orders the delivery time will be informed accordingly.
